LC Connector, original designed by Lucent, is a small form factor (SFF) connector and an ideal for high density applications, it has become the most popular and best performing SFF connector. It looks similar to SC, but just half its size, and uses the RJ-45 telephone jack-like latch mechanism.

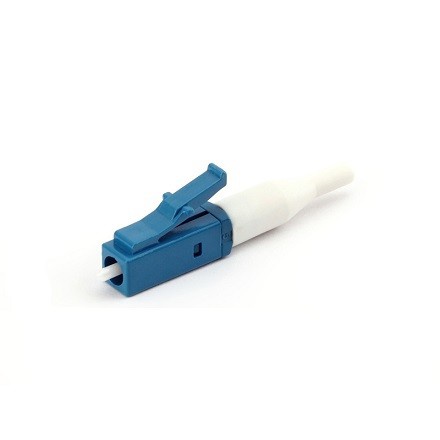

SAISO LC Pro Connector, includes singlemode and multimode, has a zirconia ceramic 1.25mm O.D. ferrule with either a PC or APC endface, and provides optimum insertion and return loss. The SAISO LC Connector is available with pre-assembled 1pc and LC Connector Kit versions (upon request), in together of LC Uniboot, LC Angled boot, LC-HD Connector and LC-Mini Connector. They are Telcordia, ANSI/EIA/TIA and IEC compliant.
SAISO is providing Standard and Pro level for choices, to better meet your different application and requirements.
Specifications
Parameters | Single-mode | Multimode | |||
UPC | UPC | APC | APC | MM | |
Premium | Standard | Premium | Standard | Standard | |
Typical Insertion Loss (dB) | 0.05 | 0.08 | 0.07 | 0.12 | 0.10 |
Max Insertion Loss (dB) | 0.15 | 0.20 | 0.15 | 0.25 | 0.20 |
Typical Return Loss (dB) | ≥55 | ≥65 | ≥25 | ||
Operating Temperature (°C) | – 40 to +75 | ||||
Durability | <0.2dB typical change, 500 matings | ||||
Ferrule Ø | 125μm | 127μm | |||
*SAISO is providing Standard and Premium two levels for choices, which are better to meet your different applications and requirements.
Features
· Low insertion loss and back reflection loss
· Available with pre-assembled 1pc and connector kits for fiber connectors' assemby options
· Behind the wall 0.9mm, fiber jumper and cable diameter 2.0mm and 3.0mm
· Heat shrink tube type for 2.0mm and eyelet/crimp sleeve type of 3.0mm
· Various housing/boots color for choices, SM, MM and APC
· TIA/EIA, IEC and Telcordia compliance
· Meets with RoHS and REACH
Applications
· Telecommunications
· Data Centers
· FTTH
· Wireless
· CATV
· Optical measurement instruments
