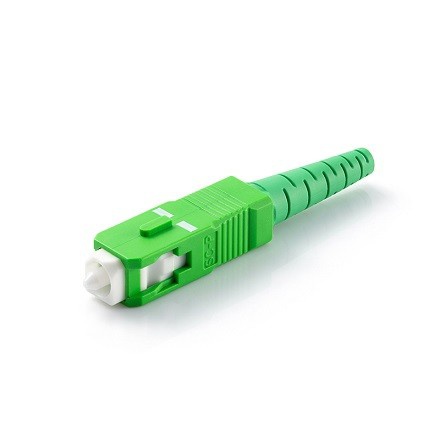

The full name of SC Connector is Subscription Channel connector, which is originally developed by NTT. It’s a push-pull connector with a square body of injection molded thermo-plastic. It has an easy-to-use push to insert and pull to remove locking mechanism, which prevents rotational misalignment. And an audible click lets you know that the connector is fully engaged. It has become known as a popular industry standard connector, and can be duplex with a clip. SAISO SC connectors are available with high quality ferrules of singlemode as physical contact(PC), angled physical contact(APC),and Multi-mode physical contact(PC) ferrules, in together of different colors housing, types of boots. SAISO is providing Standard and Premium two levels for choices, which are better to meet your different applications and requirements.
Catalogue DownloadSpecifications
Parameters | Single-mode | Multimode | |||
UPC | UPC | APC | APC | MM | |
Enhanced | Standard | Enhanced | Standard | Standard | |
Typical Insertion Loss (dB) | 0.05 | 0.08 | 0.07 | 0.12 | 0.10 |
Max Insertion Loss (dB) | 0.15 | 0.20 | 0.15 | 0.25 | 0.20 |
Typical Return Loss (dB) | ≥55 | ≥65 | ≥25 | ||
Operating Temperature (°C) | – 40 to +75 | ||||
Durability | <0.2dB typical change, 500 matings | ||||
Ferrule Ø | 125μm | 127μm | |||
*SAISO is providing Standard and Premium two levels for choices, which are better to meet your different applications and requirements.
Features
· Low insertion loss and back reflection loss
· Available with pre-assembled 1pc and connector kits for fiber connectors' assemby options
· Available with 0.9mm, 2.0mm and 3.0mm boots connectors
· Various housing/boots color for choices, SM, MM and APC
· Flammability rating: UL 94V-0; TIA/EIA, IEC and Telcordia GR-326 compliance
· Meets with RoHS and REACH
Applications
· Telecoms
· FTTx Indoor/Outdoor Cables
· Wireless
· CATV
