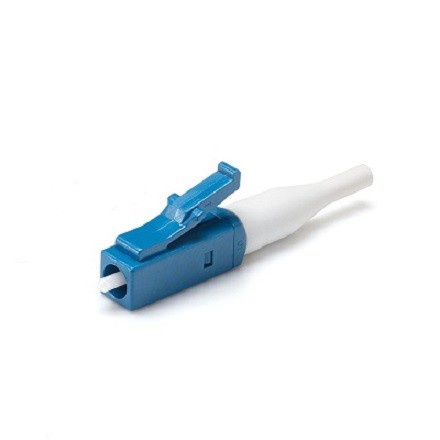

The SAISO LC Premium Connector, includes singlemode and multimode, has a zirconia ceramic 1.25mm O.D. ferrule with either a PC or APC endface, and provides optimum insertion and return loss.
The SAISO LC Connector is available with pre-assembled 1pc and LC Connector Kit versions (upon request), in together of LC Uniboot, LC Angled boot, LC-HD Connector and LC-Mini Connector. They are Telcordia, ANSI/EIA/TIA and IEC compliant, SAISO is providing Standard and Pro level for choices, to better meet your different application and requirements.
· Compliance with Telcordia, EIA/TIA/ANSI and IEC specification
· Compact, pull-proof design
· RJ-45 style interface
· Low insertion loss and back reflection loss
· High precision alignment
· Various housing color and boots color with UL-rated for choices
· Available with pre-assembled 1pc and connector kits design
Specifications
Parameters | Single-mode | Multimode | |||
UPC | UPC | APC | APC | MM | |
Premium | Standard | Premium | Standard | Premium | |
Typical Insertion Loss (dB) | 0.05 | 0.08 | 0.07 | 0.12 | 0.10 |
Max Insertion Loss (dB) | 0.15 | 0.20 | 0.15 | 0.25 | 0.20 |
Typical Return Loss (dB) | ≥55 | ≥65 | ≥25 | ||
Operating Temperature (°C) | – 40 to +75 | ||||
Durability | <0.2dB typical change, 500 matings | ||||
Ferrule Ø | 125μm | 127μm | |||
*SAISO is providing Standard and Premium two levels for choices, which are better to meet your different applications and requirements.
Features
· Low insertion loss and back reflection loss
· Available with pre-assembled 1pc and connector kits for fiber connectors' assemby options
· Behind the wall 0.9mm, fiber jumper and cable diameter 2.0mm and 3.0mm
· Heat shrink tube type for 2.0mm and eyelet/crimp sleeve type of 3.0mm
· Various housing/boots color for choices, SM, MM and APC
· Flammability rating: UL 94V-0; TIA/EIA, IEC and Telcordia GR-326 compliance
· Meets with RoHS and REACH
Applications
· Telecommunications
· Data Centers
· FTTH
· Wireless
· CATV
· Optical measurement instruments
