Polishing Film ADS series
Colorless Transparent Polishing Final Film with 127mm Diameter (100 PCS/Pack) NTT ADS series final polishing silica film, with its different structure from conventional final polishing films, is a next generation polishing film that maintains a stable polishing power while realizing greater long life. Using AAS-DM series diamond polishing film in the pre-processing brings an even further synergistic effect.
Product Description Specifications Industry Applications Product Video
Product Description

Colorless Transparent Polishing Final Film with 127mm Diameter (100 PCS/Pack)

NTT ADS series final polishing silica film, with its different structure from conventional final polishing films, is a next generation polishing film that maintains a stable polishing power while realizing greater long life. Using AAS-DM series diamond polishing film in the pre-processing brings an even further synergistic effect.

Features

  • Polish Optical Connector End Face Without Scratches or Residues
  • Stable Polishing Force for Final Finish Performance and Life-span
  • Achieve a Polishing Level of Super-low Return Loss Amount (UPC)
  • Prevent Sudden Occurrences of Fiber Indentation after Many Usages
  • For Almost Any Polishing Machines, Polishing Process, and Connector

Applications

  • Fiber Optic Connector End-Face Polishing
  • Multi-Fiber (MPO/MTP) Ferrule Processing
  • Repair and Reconditioning
  • Optoelectronic Component Fabrication
  • Ceramic and Metal Micro-Finishing
Specifications
TypeADS Series Final Polish Silica Film

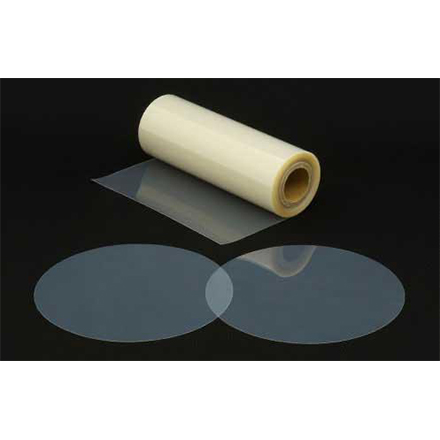

Standard SizesDisk type: 127mm (5inch)dia. (100pcs/set)
Roll type: 140mm (5.5inch)×12m (1 roll/set)
Film ColorADS-NEXT: Colorless, translucent (Disks have the “NEXT” stamp in the center)
ADS: Colorless, translucent (Disks have the “ADS” stamp in the center)
Base Thickness75μm (3mil)
Compatible Ferrule2.5mm diameter zirconia ferrule
1.25mm diameter zirconia ferrule

*The above Specications were obtained by using SAISO recommended products and procedures.

View More
Industry Applications
  • Fiber Optic Manufacturing
  • Fiber Optic Testing & Assembly
  • Precision Optics
Drawings

The following content is the product's drawings, including structural diagrams, dimensioning, etc., for your reference during installation, processing, or design

  • Drawings
Play

Product Video
