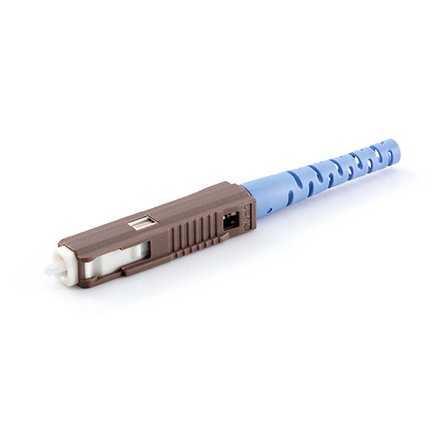

The MU Connector is designed by NTT, This small form factor connector is approximately half the size of the SC connector, and has a push-pull style design. The connector features a pre-assembled body and precision molded plastic housing, and a free floating 1.25mm O.D. ferrule held in place with a precision spring. MU-J connector is the same as the MU, but without the outer housing, used in back panel solutions and high-density situations where tight fits are necessary.
SAISO MU Connectors are fully compatible with NTT-MU style products and JIS compliant. Both of singlemode and multimode, pre-assembled 1pc and MU Connect Kits are available upon request.
Specifications
Parameters | Single-mode | Multimode |
UPC | MM | |
Standard | ||
Typical Insertion Loss (dB) | 0.10 | 0.15 |
Max Insertion Loss (dB) | 0.20 | 0.30 |
Typical Return Loss (dB) | ≥55 | ≥25 |
Operating Temperature (°C) | – 40 to +75 | |
Durability | SM <0.1dB typical change, 500 matings | |
Ferrule Ø | 125μm | 127μm |
*The above Speci cations were obtained by using SAISO recommended products and procedures.
Features
· Low insertion loss and back reflection loss
· Pre-assembled 1pc for MU fiber connectors' assemby options
· Available with 0.9mm and 2.0mm boots connectors
· Various housing/boots color for choices, SM, MM and APC
· Flammability rating: UL 94V-0; IEC, JIS and Telcordia compliance
· Meets with RoHS and REACH
Applications
· Telecommunications
· Data Communications
· FTTx
· On Board Optics
