Fiber Optic Interconnect

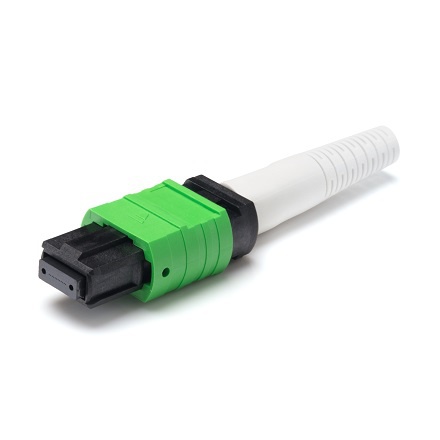

MPO Pro SM with 3.0mm Round Boot

Product code: 621-XXX-G3

MTP/MPO Connector is a multi-fiber connector with its MT ferrule, designed for high-density backplane and Printed Circuit Board (PCB) applications in Datacom and Telecom systems.

MTP/MPO connector offers up to 12 times the density of standard connectors, providing significant space and cost savings, it has a pair of grooves running parallel to the fibers for metal guide pins that align the ferrules when mated.

SAISO MTP/MPO Connectors are available for terminated jumpers with standard singlemode and multimode, as well as Super Low Loss (MPO) or Elite (MTP) versions with 8-fiber, 12-fiber and 24-fiber. We have the original MPO from Japan and MTP from US Conec.

Catalogue Download

Specifications

MPO Series

MM Standard

MM Super Low Loss

SM Standard

SM Super Low Loss

Insertion Loss

Typical
 (all fbers)

0.20dB

Typical
(all fbers)

0.08dB

Typical
(all fbers)

0.25dB

Typical
(all fbers)

0.10dB

Maximum

(single fber)

0.40dB

Maximum

(single fber)

0.25dB

Maximum
(single fber)

0.75dB

Maximum

(single fber)

0.35dB

Typical Return Loss (dB)

≥25(Flat Polish)

≥25≥25(Flat Polish)

≥60dB (8° Angle Polish)

≥60dB (8° Angle Polish)

Operating Temperature (°C)

– 40 to +75

Durability

≤0.2dB change,

1000 matings

≤0.2dB change,

1000 matings

Ferrule Ø

8, 12, 24

8, 12

8, 12, 24

8, 12

*SAISO is providing Standard and Premium two levels for choices, which are better to meet your different applications and requirements.

Features

· Compliance with Telcordia, EIA/TIA/ANSI and IEC specification

· Compact, pull-proof design

· RJ-45 style interface

· Low insertion loss and back reflection loss

· High precision alignment

· Various housing color and boots color with UL-rated for choices

· Available with pre-assembled 1pc and connector kits design

Applications

· Data Center

· On Board Optics

· Medical

· Wireless

· FTTH

· Telecommunications

· Government & Defense
