MPO Pro SM Series
SAISO MPO Pro is a high-performance multi-fiber connector series designed for high-density and high-speed optical connectivity. Built around precision MT ferrule technology, the MPO Pro series provides accurate fiber alignment, reliable optical performance, and efficient multi-fiber connection for modern optical networks.
Download
Product Description Specifications Industry Applications Product Video
Product Description

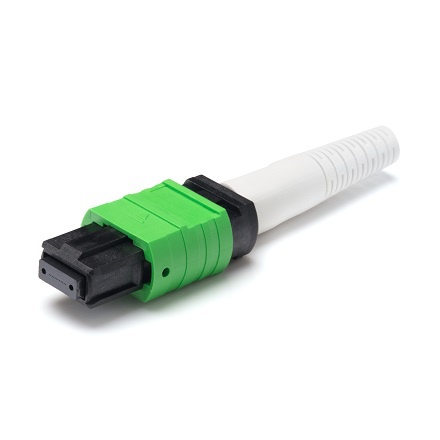

The SAISO MPO Pro SM Connector with 3.0mm Round Boot is a high-precision singlemode multi-fiber connector designed for high-density optical connectivity. It incorporates a precision MT ferrule to provide accurate fiber alignment and stable optical performance in demanding fiber optic applications.

The 3.0mm round boot provides a compact and practical cable termination design while offering mechanical protection at the connector-cable interface. The connector is suitable for singlemode fiber applications in data centers, telecommunications, backbone networks, and other high-density optical interconnection systems.

Designed for reliable and consistent performance, the MPO Pro SM connector can be integrated into MPO trunk cables, patch cords, modules, cassettes, and other high-density fiber optic assemblies.

Features

  • Multi-fiber Integration: A single connector contains 8/12/16/24/32/72 fibers (12/24 fibers are commonly used), arranged in a single or multiple array.
  • MT Ferrule: Precision glass/ceramic multi-hole array with micron-level spacing to ensure accurate alignment of multiple fibers.
  • Guide Pins (Male): Two metal guide pins ensure perfect alignment between male and female connectors without misalignment.
  • Polarity (Key): Anti-mismating design (Key Up/Down) to prevent reverse insertion and incorrect wiring sequence.
  • End Face: PC/UPC (physical contact) and APC (8° angled end face with better return loss performance).

Applications

  • Data Center
  • On Board Optics
  • Medical
  • Wireless
  • FTTH
  • Telecommunications
  • Government & Defense
Specifications
MPO SeriesMM StandardMM Super Low LossSM StandardSM Super Low Loss
Insertion LossTypical0.20dBTypical0.08dBTypical0.25dBTypical0.10dB
 (all fbers)(all fbers)(all fbers)(all fbers)
Maximum0.40dBMaximum0.25dBMaximum0.75dBMaximum0.35dB
(single fber)(single fber)(single fber)(single fber)
Typical Return Loss (dB)≥25(Flat Polish)≥25≥25(Flat Polish)≥60dB (8° Angle Polish)≥60dB (8° Angle Polish)
Operating Temperature (°C)– 40 to +75
Durability≤0.2dB change,≤0.2dB change,
1000 matings1000 matings
Ferrule Ø8, 12, 248, 128, 12, 248, 12

*The above Specications were obtained by using SAISO recommended products and procedures.

View More
Industry Applications
  • Metro & Long-Haul Networks
  • Aerospace & Defense
  • AI & High-Performance Computing
Drawings

The following content is the product's drawings, including structural diagrams, dimensioning, etc., for your reference during installation, processing, or design

  • Drawings
