MPO Pro MM Series
SAISO MPO Pro is a high-performance multi-fiber connector series designed for high-density and high-speed optical connectivity. Built around precision MT ferrule technology, the MPO Pro series provides accurate fiber alignment, reliable optical performance, and efficient multi-fiber connection for modern optical networks.
Download
Product Description Specifications Industry Applications Product Video
Product Description

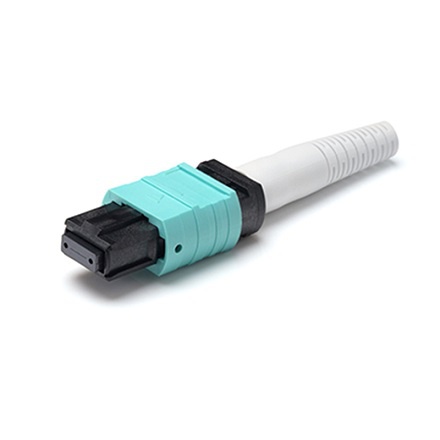

The SAISO MPO Pro OM3 Connector with 3.0mm Round Boot is a high-density multimode fiber optic connector designed for reliable, high-speed optical connectivity in data centers, enterprise networks, and high-performance computing environments. Featuring a precision MT ferrule, the connector provides accurate multi-fiber alignment and stable optical performance.

Designed for OM3 multimode fiber, the MPO Pro connector supports high-density parallel optical connections while helping optimize space within fiber optic cabling systems. The 3.0mm round boot provides a compact and practical cable termination design, making it suitable for MPO trunk cables, patch cords, cassettes, modules, and other pre-terminated fiber optic assemblies.

SAISO provides MPO Pro connectors in multiple configurations to meet different fiber counts, connector genders, and application requirements, with customized solutions available for specific project needs.

Features

  • Multi-fiber Integration: A single connector contains 8/12/16/24/32/72 fibers (12/24 fibers are commonly used), arranged in a single or multiple array.
  • MT Ferrule: Precision glass/ceramic multi-hole array with micron-level spacing to ensure accurate alignment of multiple fibers.
  • Guide Pins (Male): Two metal guide pins ensure perfect alignment between male and female connectors without misalignment.
  • Polarity (Key): Anti-mismating design (Key Up/Down) to prevent reverse insertion and incorrect wiring sequence.
  • End Face: PC/UPC (physical contact) and APC (8° angled end face with better return loss performance).

Applications

  • Data Center
  • On Board Optics
  • Medical
  • Wireless
  • FTTH
  • Telecommunications
  • Government & Defense
Specifications
MPO SeriesMM StandardMM Super Low LossSM StandardSM Super Low Loss
Insertion LossTypical0.20dBTypical0.08dBTypical0.25dBTypical0.10dB
 (all fbers)(all fbers)(all fbers)(all fbers)
Maximum0.40dBMaximum0.25dBMaximum0.75dBMaximum0.35dB
(single fber)(single fber)(single fber)(single fber)
Typical Return Loss (dB)≥25(Flat Polish)≥25≥25(Flat Polish)≥60dB (8° Angle Polish)≥60dB (8° Angle Polish)
Operating Temperature (°C)– 40 to +75
Durability≤0.2dB change,≤0.2dB change,
1000 matings1000 matings
Ferrule Ø8, 12, 248, 128, 12, 248, 12

*The above Specications were obtained by using SAISO recommended products and procedures.

View More
Industry Applications
  • Metro & Long-Haul Networks
  • Aerospace & Defense
  • AI & High-Performance Computing
Drawings
