Fiber Optic Interconnect
High Spec Master Jumpers

Product code: SJM-SASA-xxx

The SAISO High Spec Master Jumpers are designed for high precise and repeatable testing applications, with exceeding Telcordia’s optical performance and end-face geometry standards. The high spec mater jumpers are made by the selected low insertion loss and high return loss of high quality ferrules and premium connector kits, under the optimized polishing and assembly technique with 100% geometry testing in factory production. Afterwards, the final high spec master jumpers will be double selected among the completed jumpers.

Each of our high spec master jumpers are marked with a unique identification serial number on cable jacket, both of the “Insertion Loss, Return Loss” and “Connector Geometry parameters” testing reports will be provided in together of the shipment.

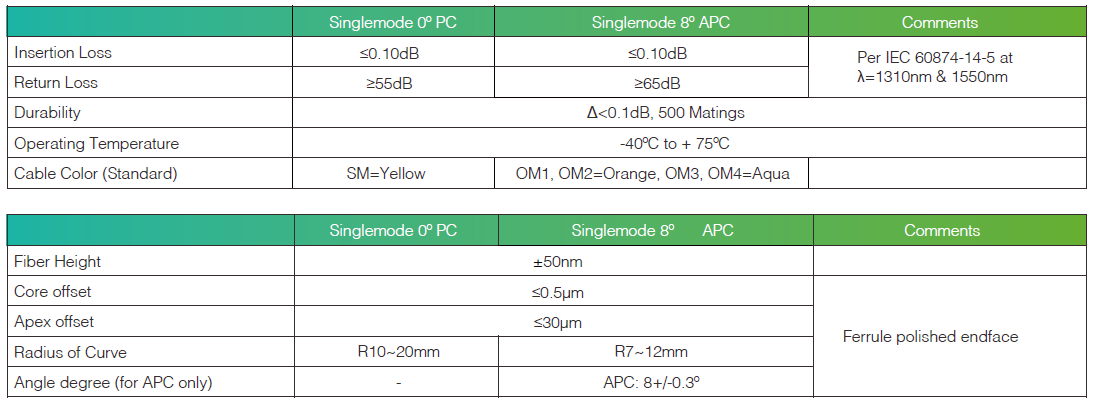

Specifications


*The above Specifications were obtained by using SAISO recommended products and procedures.

Features

· Excellent optical and geometry performance

· Geometric property exceeds Telcordia GR-326-CORE

· Unique identification serial number, full testing reports

· Special specification is available upon custom request

· Available with FC, SC, ST, LC, MU connector types

· Compliant with EN, IEC 61754 standards

· Individual package

· Both connector sides are with master function

Applications

  • • Best used for inspection and measurement

  • • Fiber core concentricity is measured 100%

  • • Concentricity is tuned to the key
