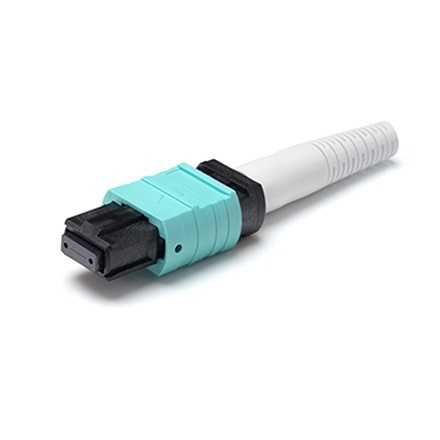

MTP/MPO Connector is a multi-fiber connector with its MT ferrule, designed for high-density backplane and Printed Circuit Board (PCB) applications in Datacom and Telecom systems.
MTP/MPO connector offers up to 12 times the density of standard connectors, providing significant space and cost savings, it has a pair of grooves running parallel to the fibers for metal guide pins that align the ferrules when mated.
SAISO MTP/MPO Connectors are available for terminated jumpers with standard singlemode and multimode, as well as Super Low Loss (MPO) or Elite (MTP) versions with 8-fiber, 12-fiber and 24-fiber. We have the original MPO from Japan and MTP from US Conec.
Specifications
MPO Series | MM Standard | MM Super Low Loss | SM Standard | SM Super Low Loss | ||||
Insertion Loss | Typical | 0.20dB | Typical | 0.08dB | Typical | 0.25dB | Typical | 0.10dB |
Maximum (single fber) | 0.40dB | Maximum (single fber) | 0.25dB | Maximum | 0.75dB | Maximum (single fber) | 0.35dB | |
Typical Return Loss (dB) | ≥25(Flat Polish) | ≥25≥25(Flat Polish) | ≥60dB (8° Angle Polish) | ≥60dB (8° Angle Polish) | ||||
Operating Temperature (°C) | – 40 to +75 | |||||||
Durability | ≤0.2dB change, 1000 matings | ≤0.2dB change, 1000 matings | ||||||
Ferrule Ø | 8, 12, 24 | 8, 12 | 8, 12, 24 | 8, 12 | ||||
*SAISO is providing Standard and Premium two levels for choices, which are better to meet your different applications and requirements.
Features
· Compliance with Telcordia, EIA/TIA/ANSI and IEC specification
· Compact, pull-proof design
· RJ-45 style interface
· Low insertion loss and back reflection loss
· High precision alignment
· Various housing color and boots color with UL-rated for choices
· Available with pre-assembled 1pc and connector kits design
Applications
· Data Center
· On Board Optics
· Medical
· Wireless
· FTTH
· Telecommunications
· Government & Defense
