SAISO provides a variety of FC Adapters in Round, Solid, Split and Oval mount configurations with a choice of zirconia or phosphor
bronze sleeves. They perform well withdrawal force.

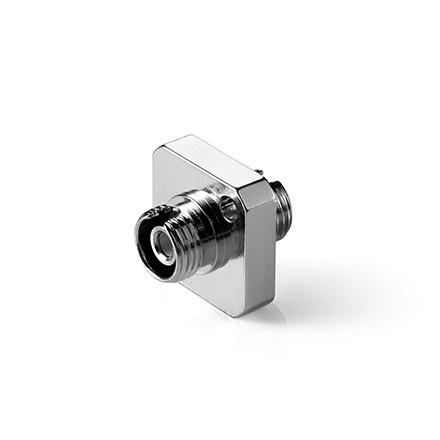

The FC Round and Square Adapters are available in the standard body styles with nickel plated brass or nickel plated zinc housing, they are available both of singlemode and multimode with different shape of flanges. Fiberyo is providing FC Adapters with Standard and Premium two quality levels for choices, to better suit different applications and requirements. The plastic FC Adapters are available upon request.
Specifications
Parameters | Specifications |
Typical Insertion Loss (dB)* | 0.10 |
Max Insertion Loss (dB)* | 0.20 |
Operating Temperature (°C) | -40 to +75 |
Humidity Resistance | 95% |
Durability | 200 matings per GR-326-Core |
*The above Specifications were obtained by using SAISO recommended products and procedures
Features
• Easy-to-use, push and pull locking mechanism
• Low insertion and back re ection loss
• One-piece construction & pull-proof design
• Different colors housing and types of boots with UL-Rated
• Available with angled boot and SC 4.8mm connector
• Compliance with Telcordia, TIA/IEA, IEC and JIS
Applications
· Medical
· Government & Defense
· Test & Laboratory Equipment
